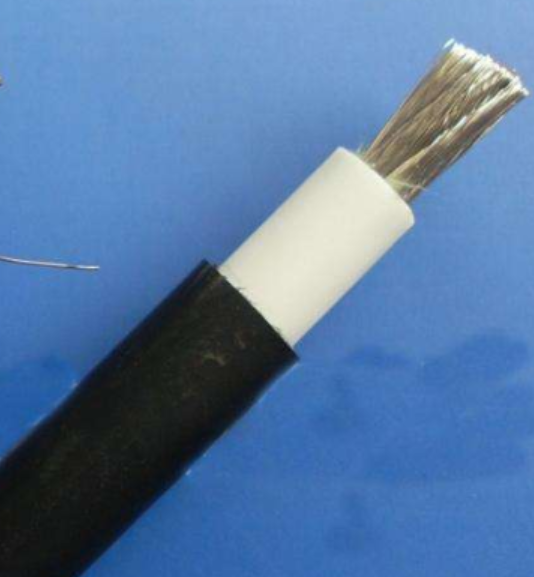

机车电缆WDZ-DCYJ-125-1*95mm2
机车电缆WDZ-DCYJ-125-1*95mm2适用范围
机车电缆WDZ-DCYJ-125-1*95mm2适用于额定电压3kV及以下的铁路客车用电线电缆用的配电系统、控制系统、信号系统的电器装置用电缆.特别适用于窄小空间以及有低烟、无卤、阻燃要求的场合。
机车电缆WDZ-DCYJ-125-1*95mm2执行标准
机车电缆WDZ-DCYJ-125-1*95mm2执行GB / T 12528一2008
机车电缆WDZ-DCYJ-125-1*95mm2使用特性
1、额定电压(文流)分为:500V、 750V、1500V、 3000V。
2、电缆线芯允许的长期工作温度:
125℃交联聚烯烃混合物绝缘 ·················································································125℃
125℃薄壁型电缆用聚烯烃混合物绝缘·····································································125℃
150℃薄壁型电缆用聚烯烃混合物绝缘·····································································150℃
3、电缆***低使用环境温度:
交联聚烯烃混合物绝缘·········································································-40℃
薄壁型电缆用聚烯烃混合物绝缘···············································································-60℃
4.耐Ell特性代号:
安装在无矿物油和燃料油污染处································································1
安装在受矿物油污染，但无燃料油污染处《耐矿物油).....................................................2
安装在受矿物油污染和嫩料油污染处(耐矿物油和燃料油)...............................................3
电缆结构
型号及名称
|
型号 |
名称 |
芯数 |
标称截面 |
|
WDZ一DCYJ一125 |
铜芯耐热125℃交联聚烯烃绝缘无卤低烟阻燃铁路客车用电线电缆 |
1 |
1~4mm² |
|
WDZ一DCYJ/2一125 |
耐矿物油铜芯耐热125℃交联聚烯烃绝缘无卤低烟阻燃铁路客车用电线电缆 |
1 |
0.75~300mm² |
|
WDZ一DCYJ/3一125 |
耐矿物油和燃料油铜芯耐热125℃交联聚烯烃绝缘无卤低烟阻燃铁路客车用电线电缆 |
1 |
0.75~300mm² |
|
WDZ一DCYJB一125 |
铜芯耐热125℃薄壁型电缆用聚烯烃绝缘无卤低烟阻燃铁路客车用电线电缆 |
1 |
0.5~6mm² |
|
WDZ一DCYJB/2一125 |
耐矿物油铜芯耐热125℃薄壁型电缆用聚烯烃绝缘无卤低烟阻燃铁路客车用电线电缆 |
||
|
WDZ一DCYJB/3一125 |
耐矿物油和嫌料油铜芯耐热125℃薄壁型电缆用聚烯烃绝缘无卤低烟阻然铁路客车用电线电缆 |
||
|
WDZ一DCYJB一150 |
铜芯耐热150℃薄壁型电缆用聚烯烃绝缘无卤低烟阻燃铁路客车用电线电缆 |
||
|
WDZ一DCYJB/2一150 |
耐矿物油铜芯耐热150℃薄壁型电缆用聚烯烃绝缘无卤低烟阻燃铁路客车用电线电缆 |
||
|
WDZ一DCYJB/3一150 |
耐矿物油和洪料油铜芯耐热150℃薄壁型电缆用聚烯烃绝缘无卤低烟阻燃铁路客车用电线电缆 |
||
|
WDZ一DCKYJE一125 |
铜芯耐热125℃交联聚烯烃绝缘及护套无卤低烟阻然铁路客车用电线电缆 |
2~48 |
0.5~2.5mm² |
|
WDZ一DCKYJE/B一125 |
铜芯耐热125℃高强度薄壁聚烯烃绝缘交联聚烯烃护套无卤低烟阻燃铁路客车用电线电缆 |
||
|
WDZ一DCKYJEPI一125 |
铜芯耐热125℃交联聚烯烃绝缘镀锡铜丝编织屏蔽交联聚烯烃护套无卤低烟阻然铁路客车用电线电缆 |
||
|
WDZ一DCKYJEPI/B一125 |
铜芯耐热125℃高强度薄壁聚烯烃绝缘镀锡铜丝编织屏蔽交联聚烯烃护套无卤低烟阻然铁路客车用电线电缆 |
5.电缆敷设的允许弯曲半径:
电缆直径(D)为20m m及以下时应不小于6D。
电缆直径(D)为20m m及以下时应不小于8D。
