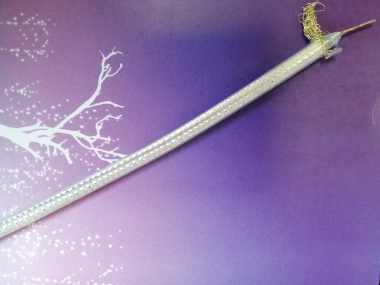

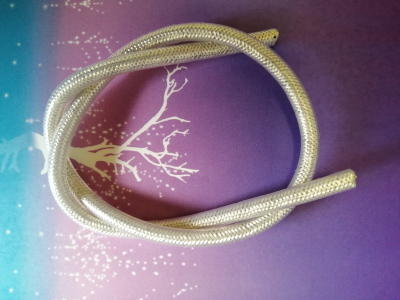

耐高温射频同轴电缆SFF SF46F
耐高温射频同轴电缆SFF SF46F技术参数：
•额定温度：-60℃∽150℃
•额定电压：耐电压测试2000V不击穿，火花实验电压4000V
•绝缘材料：SFF:PTFE
SF46F:FEP
•绝缘层颜色:半透明
•护套颜色：透明、浅棕色或蓝色
•产品通过UL VW-1及CSA FT1耐燃测试
耐高温射频同轴电缆SFF SF46F适用于通讯设备及其他电子设备的高频信号传输
|
电缆型号 |
导体结构 |
芯线外径 |
屏蔽层型式 |
护套层***小厚度 |
电缆完成外径(mm) |
衰减常数≤dB/m |
|||
|
30Hz |
200Hz |
3000Hz |
|||||||
|
RG-178 |
SFF-50-1 |
7/0.10 |
0.87 |
1 |
0.2 |
1.8 |
0.33 |
0.85 |
3.4 |
|
RG-316 |
SFF-50-1.5-1 |
7/0.18 |
1.5 |
1 |
0.25 |
2.55 |
0.19 |
0.5 |
2 |
|
RG-316D |
SFF-50-1.5-2 |
7/0.18 |
1.5 |
2 |
3.1 |
0.19 |
0.5 |
2 |
|
|
SFF-50-2-1 |
1/0.73 |
2.2 |
1 |
3.3 |
0.12 |
0.31 |
1.27 |
||
|
SFF-50-2-2 |
1/0.73 |
2.2 |
2 |
3.95 |
0.12 |
0.31 |
1.27 |
||
|
RG-303 |
SFF-50-3-1 |
1/0.93 |
3 |
1 |
0.35 |
4.35 |
0.086 |
0.23 |
0.95 |
|
RG-142 |
SFF-50-3-2 |
1/0.93 |
3 |
2 |
5.1 |
0.086 |
0.23 |
0.95 |
|
|
RG-304 |
SFF-50-5 |
1/1.48 |
4.6 |
1 |
6.3 |
0.057 |
0.15 |
0.67 |
|
|
SFF-50-7 |
7/0.82 |
7.3 |
1 |
9.1 |
0.044 |
0.12 |
0.52 |
||
|
SF46F-50-2-1 |
7/0.254 |
2.2 |
1 |
0.25 |
3.3 |
0.12 |
0.31 |
1.27 |
|
|
SF46F-50-2-2 |
7/0.254 |
2.2 |
2 |
3.95 |
0.12 |
0.31 |
1.27 |
||
|
SF46F-50-3-1 |
7/0.35 |
3 |
1 |
0.35 |
4.35 |
0.086 |
0.23 |
0.95 |
|
|
SF46F-50-3-2 |
7/0.35 |
3 |
2 |
5.1 |
0.086 |
0.23 |
0.95 |
||
|
RG-178 |
SF46F-50-1 |
7/0.10 |
0.87 |
1 |
0.2 |
1.8 |
0.33 |
0.85 |
3.4 |
|
RG-316 |
SF46F-50-1.5-1 |
7/0.18 |
1.5 |
1 |
0.25 |
2.55 |
0.19 |
0.5 |
2 |
|
RG-316 |
SF46F-50-1.5-2 |
7/0.18 |
1.5 |
2 |
3.1 |
0.19 |
0.5 |
2 |
|
|
SF46F-50-2-1 |
7/0.254 |
2.2 |
1 |
3.3 |
0.12 |
0.31 |
1.27 |
||
|
SF46F-50-2-2 |
7/0.254 |
2.2 |
2 |
3.95 |
0.12 |
0.31 |
1.27 |
||
|
SF46F-50-3-1 |
7/0.35 |
3 |
1 |
0.35 |
4.35 |
0.086 |
0.23 |
0.95 |
|
|
SF46F-50-3-2 |
7/0.35 |
3 |
2 |
5.1 |
0.086 |
0.23 |
0.95 |
||
